PAX s300 IP Address Help

PAX s300 IP Address Help

How to find the IP Address:



Log into the PAX Terminal (Hold Function + 1 to open the menu, enter the PW)

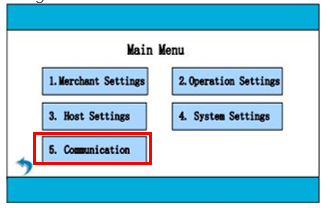

Navigate to communication

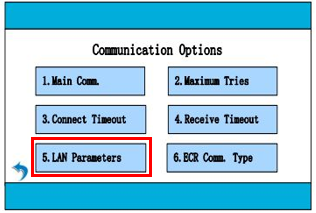

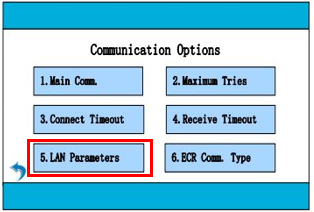

Click LAN Parameters

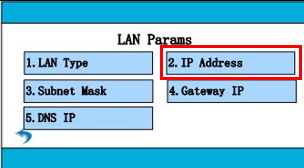

Click IP Address

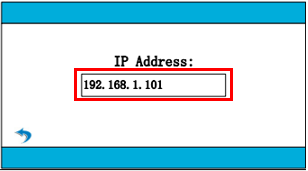

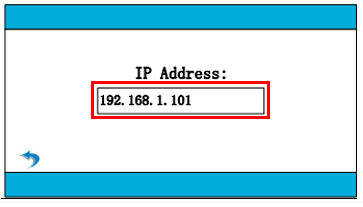

Set the IP Address by typing it into the system (Example Below)


How to set the IP Address to Static:



Log into the PAX Terminal (Hold Function + 1 to open the menu, enter the PW)

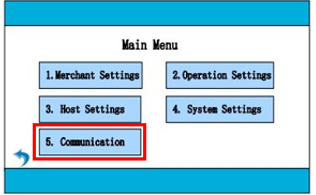

Navigate to communication


Click LAN Parameters




 Click IP Address



Set the IP Address by typing it into the system (Example Below)

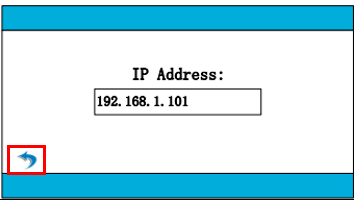

After you set the IP Address click the back button and then select

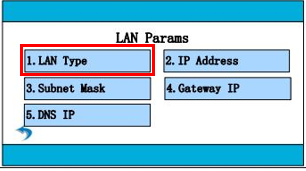

Now click LAN Type

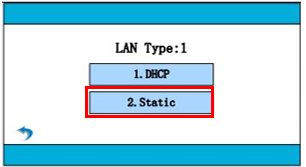

Select STATIC from the options menu



Now back out all the way to the main screen
