Caller ID Setup

Blue print of the caller-id Setup:





Three LAN Ports at back of caller Id box:

Power adapter (Should connect to Power cord)

To Data Network port (Should Directly connect to Network)

Towards Gateway (Should Directly connect to Network)

To Phone port (Should Directly connect to Phone)





                                                                Three LAN Ports





                                                                Two Ports to Network







                                                                Phone Port to Phone

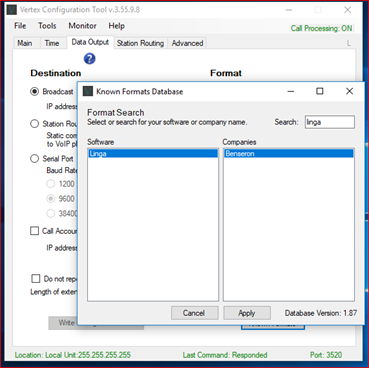

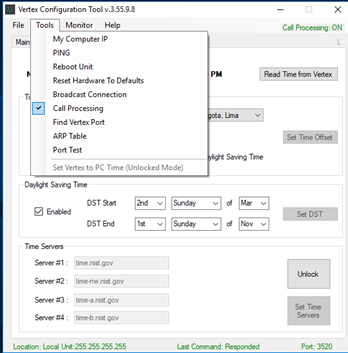

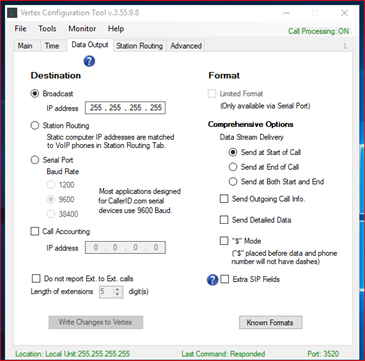

Vertex Utility Configuration:
