Retail POS: Card Reader Hardware Settings

Retail POS: Card Reader Hardware Settings


Back Office

For Back Office Card Reader EMV Settings, see the EMV Settings Knowledge Article.


POS

In POS, select Operation then Hardware Settings.

Note: Only Employees with the proper Role and Permission settings have access to the Hardware Settings screen.
​

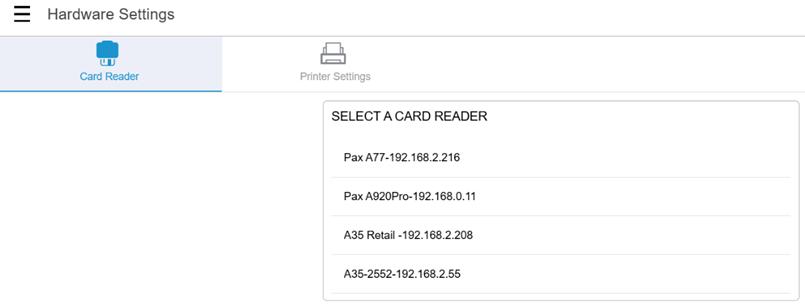

On the Hardware Settings screen, select Card Reader. The Card Reader tab allows you to Select a Card Reader. It displays a list of EMV devices configured in the Back Office, with their Name and IP Address.

A selected device will be marked with a check mark ✓.
  1. If a Card Reader device is selected but it's not connected, a 'Communication Error' pop-up appears. Click Done to close the pop-up.
    1. Note: This can occur due to a number of reasons, including the wrong IP Address, the Device is turned off, or incorrect Network configuration


Select A Bluetooth Card Reader

  1. For the dropdown, select Edynamo or Tdynamo.


  2. For the Bluetooth Pairing Request pop-up that appears, enter 000000 and select Pair.


    1. Edynamo - the selected device will be marked with a check mark ✓.


    2. Tdynamo
      1. Enable Bluetooth on POS.
      2. Look for the Tdynamo device from the list of available devices.
      3. Select the device to pair.
      4. The selected device will be marked with a check mark ✓.
